Waterless urinal catalogue
URIMAT waterless urinals, made by URIMAT Schweiz AG, with the specifications facility teams ask for. Filter by material, range, application and features, and compare up to three models.
About this catalogue. It lists models in the manufacturer's current international range. FlowSave Commercial is a URIMAT commercial partner and does not manufacture these products. Available through our Canadian supply partner. Contact FlowSave Commercial for current stock, model options and a custom quotation. Equipment and installation are quoted individually, so no prices are shown. Product images and drawings are URIMAT's own, used with permission.
12 models
eco25 range, plastic

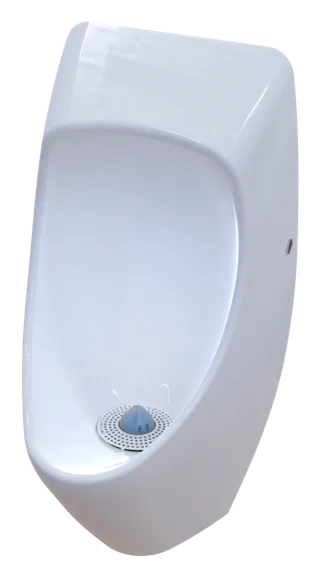

URIMAT eco25
Item no. 17045, 17090
The current plastic model in URIMAT's range: a lightweight wall-hung bowl with URIMAT's membrane odour trap and no water supply.
- Dimensions (W × D × H)
- 393 × 390 × 790 mm
- Weight
- 4.2 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
eco25 range, plastic

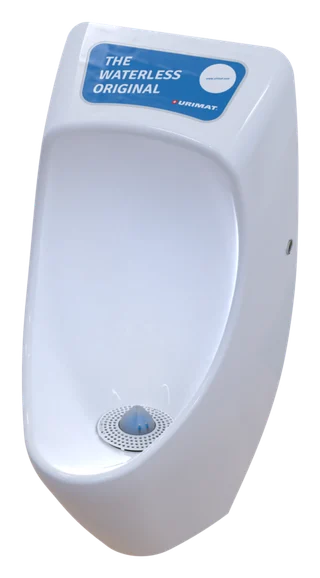

URIMAT eco25plus
Item no. 17145, 17190
The eco25 bowl with a recessed static panel. The printed insert can be changed to show facility messages or advertising.
- Dimensions (W × D × H)
- 393 × 390 × 790 mm
- Weight
- 4.4 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
eco25 range, plastic

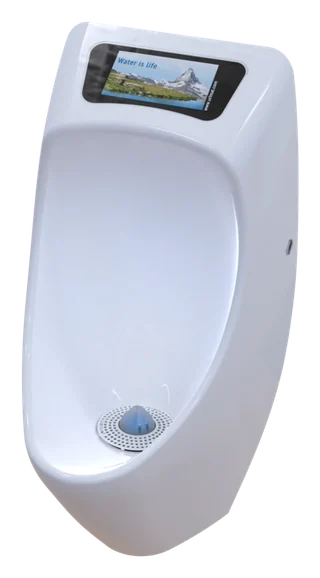

URIMAT eco25video
Item no. 17245, 17290
The eco25 bowl with a 6.5-inch screen in the display panel for moving-image messages or advertising. Needs a power supply.
- Dimensions (W × D × H)
- 393 × 390 × 790 mm
- Weight
- 5.5 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
ceramic range, ceramic
URIMAT ceramic C2
Item no. 12401
A compact white ceramic bowl for smaller washrooms, with URIMAT's membrane trap and the NRV 2.0 non-return valve.
- Dimensions (W × D × H)
- 335 × 315 × 640 mm
- Weight
- 19.7 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
ceramic range, ceramic
URIMAT ceramic20
Item no. 12220
URIMAT's full-size white ceramic urinal: a rimless glazed bowl with the membrane trap and NRV 2.0 non-return valve.
- Dimensions (W × D × H)
- 380 × 350 × 750 mm
- Weight
- 21 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
inox range, stainless steel
URIMAT inox
Item no. 18200
A stainless-steel bowl for projects that specify metal fixtures, using an S-trap version of URIMAT's membrane trap.
- Dimensions (W × D × H)
- 330 × 370 × 545 mm
- Weight
- 6.4 kg
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
coloured range, ceramic

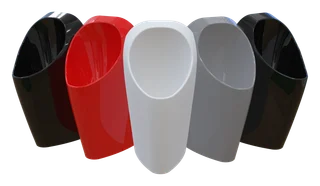

URIMAT coloured urinals
URIMAT ceramic bowls produced in custom colours to order for design-led interiors. The manufacturer publishes few details; specifications are confirmed per project.
- Dimensions (W × D × H)
- Depends on the ceramic model chosen
- Weight
- Depends on the model
- Status
- Current manufacturer range
- Canada
- Through our Canadian supply partner
ceramic range, ceramic

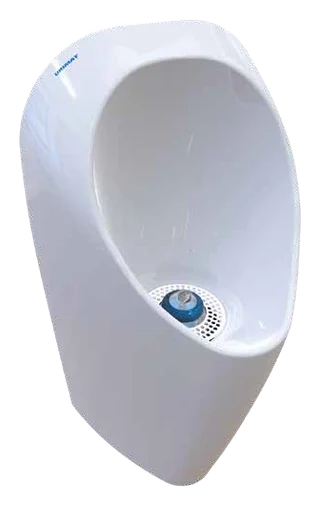

URIMAT ceramic C2-CS
Item no. 12402
The ceramic C2 bowl fitted with URIMAT's CS automatic cleaning system, which doses cleaner from a bottle and shows its status with an LED. Needs a power supply. Shown in URIMAT's installation manual and CS cleaning-system brochure.
- Dimensions (W × D × H)
- 335 × 315 × 640 mm
- Weight
- 20.7 kg
- Status
- In manufacturer documents only
- Canada
- Through our Canadian supply partner
eco range, plastic
URIMAT eco plus
Item no. 16001
An earlier-generation plastic model with a static display panel. Still listed by the manufacturer but absent from its 2026 brochure, so it may be superseded by the eco25plus.
- Dimensions (W × D × H)
- 410 × 390 × 790 mm
- Weight
- 4.4 kg
- Status
- Listed by manufacturer, may be legacy
- Canada
- Through our Canadian supply partner
eco range, plastic
URIMAT eco video
Item no. 16981
An earlier-generation plastic model with a 6.5-inch video screen. Still listed by the manufacturer but absent from its 2026 brochure, so it may be superseded by the eco25video.
- Dimensions (W × D × H)
- 410 × 390 × 790 mm
- Weight
- 5.5 kg
- Status
- Listed by manufacturer, may be legacy
- Canada
- Through our Canadian supply partner
ceramic range, ceramic
URIMAT ceramic (matt black)
Item no. 12.205
A ceramic URIMAT bowl that appears in the 2026 brochure in a matt black finish. It has no dedicated product page from the manufacturer, so details are confirmed with the supplier.
- Dimensions (W × D × H)
- 390 × 360 × 705 mm
- Weight
- 16 kg
- Status
- In manufacturer brochure only
- Canada
- Through our Canadian supply partner
ceramic range, ceramic
URIMAT ceramiccompact (matt grey)
Item no. 12.306
A smaller ceramic URIMAT bowl that appears in the 2026 brochure in matt grey. It has no dedicated product page from the manufacturer, so details are confirmed with the supplier.
- Dimensions (W × D × H)
- 340 × 310 × 640 mm
- Weight
- 12 kg
- Status
- In manufacturer brochure only
- Canada
- Through our Canadian supply partner
Not sure which model fits?
Tell us about the washroom and its traffic. A facility assessment matches the model to the site, the drains and the servicing you can support.
